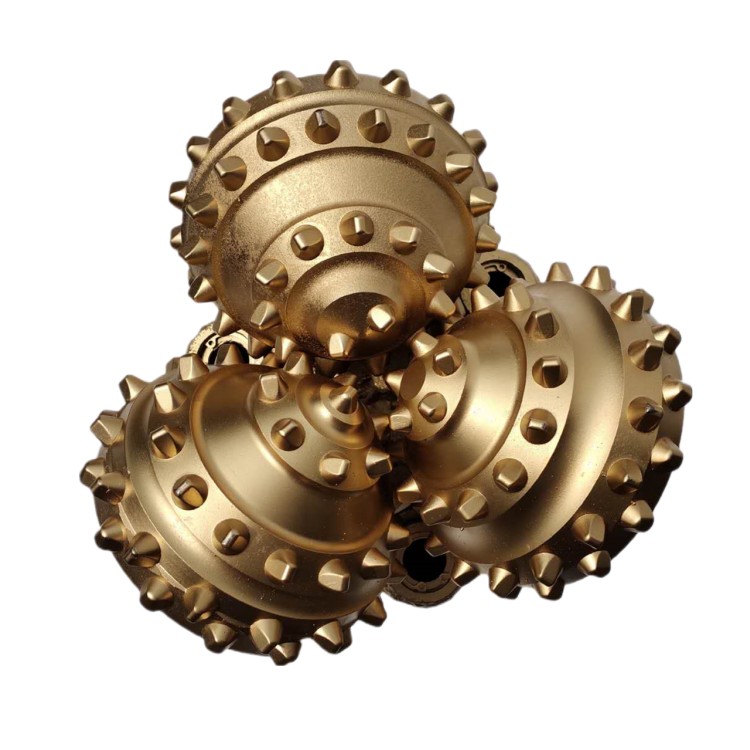

Factory supply Rock Roller Bits Size 7 7/8" IADC542/545 TCI Drill Tools Tricone Bits
Tricone bit is an ideal solution for soft, medium, or hard rock formations, it is connected with the drill stem and rotates along with it, and drive cones to pressed on the rock. Each cone rotates round the axis of its leg and three cones simultaneously revolve around the bit center. The tungsten carbide inserts on the cone shell cause the formation to spall under the weight on bit and the impact load of cone rotating, the debris will be discharged out to hole by compression air. Tricone bits come in several different varieties, and can deal with a wide range of different rock formations. It is important to know the type of formation you are drilling in when selecting a drill bit.
Advantage:
Tianying rock roller bit feature an improved cutting structure, with wear and fracture resistant tungsten carbide inserts, designed to maximize penetration rates.
Bearings are refined and strengthened.
Rock drilling bits are carefully engineered to maximize productivity and lower total drilling costs.
HOW TO READ AN IADC CODE PROPERLY?
| First Digit | Tooth |
| 1 | Steel tooth bits for Soft Formation |
| 2 | Steel tooth bits for Medium Formation |
| 3 | Steel tooth bits for Hard Formation |
| 4 | TUNGSTEN CARBIDE INSERT BITS |
| 5 | For varying formation hardness with 4 being the softest and 8 the hardest. |
| 6 | |
| 7 | |
| 8 | |
| Second Digit | FORMATION |
| 1 | 1,2,3 and 4 are further breakdown of formation with 1 being the softest and 4 the hardest. |
| 2 | |
| 3 | |
| 4 | |
| Third Digit | BEARING/SEAL TYPE |
| 1 | Standard open bearing roller bit |
| 2 | Standard open bearing roller bit, air-cooled |
| 3 | Standard open bearing roller bit with gauge protection |
| 4 | Sealed roller bearing bit |
| 5 | Sealed roller bearing bit with gauge protection |
| 6 | Journal sealed bearing bit |
| 7 | Journal sealed bearing bit with gauge protection |
| Fourth Digit | ADDITIONAL FEATURES |
| A | Air application |
| R | Reinforced welds |
| C | Center jet |
| S | Standard steel tooth |
| D | Deviation control |
| X | Chisel insert |
| E | Extended jet |
| Y | Conical Insert |
| G | Extra gage protection |
| Z | Other insert shape |
| J | Jet Deflection |
